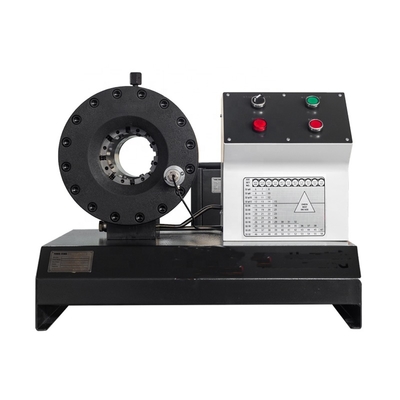

Building material shops 1 1/4 finn 12v power high pressure hydraulic pipe crimping machine

1 Set
MOQ
$2,784.00(1 - 4 Sets) $2,668.00(>=5 Sets)
preço
Building material shops 1 1/4 finn 12v power high pressure hydraulic pipe crimping machine
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty of core components: 3 years
Core Components: machine head
Machine Type: Hose Crimping Machine
Voltage: 12V
Dimension(L*W*H): 450*300*550mm
Weight: 165kg
Warranty: 1 Year
Key Selling Points: High-accuracy
Showroom Location: None
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Crimping range: 6mm to 56mm
Product name: 1 1/4 12 v finn power high pressure hydraulic hose crimping machine
Hose Size: 1 1/4" 4SP
Passing diameter: 90mm
Opening: +21mm
Dies: 8 Sets
Opening diameter: 96mm
Control: Full automatic
Crimping force: 2600kN
Power(W): 2.2KW
After-sales Service Provided: Free spare parts, Online support, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
Certificação: CE
Informação básica
Certificação: CE
Condições de Pagamento e Envio
Packaging Details: Firstly, use plastic film. Secondly , we will pack 1 1/4 12 v finn power high pressure hydraulic hose crimping machine by wooden case . In addition, we can pack the machine as per customers' requirements.
Supply Ability: 300 Set/Sets per Month 1 1/4 12 v finn power high pressure hydraulic hose crimping mac
Descrição de produto
Product Description

1 1/4 12 v finn power high pressure hydraulic hose crimping machine

Product Application

1 1/4 12 v finn power high pressure hydraulic hose crimping machine is powered by 12V/24V DC and is mainly used for outdoor mobile mechanical maintenance. The crimp force is 2600KN and the crimp range is 6~56mm. The crimper is equipped with 8 sets of standard dies. It is widely used for crimping high-pressure fuel pipes, hydraulic hoses, wire ropes and automobile brake cables.

Specification of 1 1/4 12 v finn power high pressure hydraulic hose crimping machine

Crimp head material
FORGE STEEL
Crimp range
6-56mm
Hose size
1¼", 4SN
Passing diameter
90mm
Opening diameter
96mm
Opening
+21mm
System pressure
31.5Mpa
Crimp force
2600kN
Drive
2.2kw
Standard voltage
12v/24v
Control
Full automatic
Standard dies
8 sets
Weight
165kg
L x W x H
450*300*550mm

Specification of dies

No.
Ø6
Ø8
Ø10
Ø13
Ø16
Ø19
Ø25
Ø32
Crimping Range
15-25mm
18-28mm
20-30mm
23-33mm
26-36mm
29-39mm
37-47mm
46-56mm
Length
65mm
65mm
65mm
65mm
65mm
65mm
70mm
70mm

Application of 1 1/4 12 v finn power high pressure hydraulic hose crimping machine

The machine is widely used in engineering machinery ,oil fields, steel mills ,ship manufacturing, agricultural machinery ,coal and other industries.

Detailed Images

Machine Parts

Name: Machine Head

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.


Machine Parts

Name: Die connection

Our crimping dies are connected through magnetism, which makes it convenient for assembly and disassembly, and the crimping is neat.

Machine Parts

Name: Power System

Best selling  most popular 1 1/4 inch hose crimping machine is equiped with the DC power supply system which is very popular in the industry of mobile service. This kind of power system can provide stable power supply for the machine, and makes the crimper more convenient for outdoor work.


Material

The oil cylinder cover, oil tank and piston rod are made from 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The harden layer is 2mm thick.

Feature

1 1/4 12 v finn power high pressure hydraulic hose crimping machine
1.The vehicle mounted crimping machine has great advantages for mobile mechanical maintenance and outdoor hose crimping with no AC power supply.

2.The YJK-DC32 hydraulic hose crimper machine is powered by 12V/24V DC. Average vehicle batteries can meet the power requirements of the crimper. There are few environmental constraints.

3.The crimper is small in size and easy to move.

4.Compared with the hand operated model, the vehicle mounted crimper saves manpower with greater stable crimping force.

Our Company

Henan Chengyitong Machinery Equipement Co., Ltd specializes in 1 1/4 12 v finn power high pressure hydraulic hose crimping machine , hose cutting machine , hose skiving machine and other equipment. We insist Quality Create Value and will provide one-stop service for our customers.

Packing & Delivery
Packaging
Size
450(L) * 300(W) * 550(H) mm
Weight
135kg


Packaging Details
1 1/4 12 v finn power high pressure hydraulic hose crimping machine will be packed by PE film and Wooden case .
FAQ

1.Why should we choose your company over others ?
Don't ask me , ask our clients.
" Call our clients and see if they are willing to serve as third party testimonials for our work. I think you will enjoy listening to what they say."

2. Are we the right "Fit" for you ?
Why should you choose to work with us is not because how good we are boasting or how cheap our product seems to be .
It is because our offer bridges your needs and our solution addresses your pain;
It is because our product is able to achieve Your desired result and performance;
It is because our competence to work out a proposal that springs a "before Vs after" clears Your worries;
It is because our market performance and customer referral allows for Your joined trust.


3.Do you have CE certificate?
Yes,the following is our CE certificate.

4.What's the packing of the machine?
 We use the fumigation wooden case.
